Hybrid OR - Photo Gallery

Hybrid Operating Room & Hybrid Cardiac Cath Lab Suites: Example Pictures, Images, Designs, & Layouts of Hybrid Lab Equipment. Pictures separated by Imaging Vendors including: Philips, Siemens, GE, & Toshiba.


Hybrid Operating Room Example Designs, Layouts, and Equipment from Existing Builds

A Hybrid Operating Room is a surgical theatre that is equipped with advanced medical imaging devices such as fixed C-Arms, CT scanners or MRI scanners. These imaging devices enable minimally-invasive surgery, that is less traumatic for the patient. Minimally invasive means that the surgeon does not need to cut the patient open completely in order to access the body part he wants to perform surgery on, but can insert catheters or endoscopes through small holes. Though imaging has been a standard part of the OR for a long time in the form of mobile C-Arms, Ultrasound and Endoscopy, these new minimally-invasive procedures require imaging techniques that can visualize smaller body parts such as really thin vessels in the heart muscle and can be facilitated through intraoperative 3D imaging.

Please reference the above pictures for many examples of the highly technical and advanced planning that goes into the design, layout, and equipment selection for a Hybrid Surgical Suite.

For a copy of our 'Hybrid OR Imaging System Comparison Matrix', please contact us directly or submit your information via the 'SUBMIT INQUIRY' Tab. We look forward to assisting you!

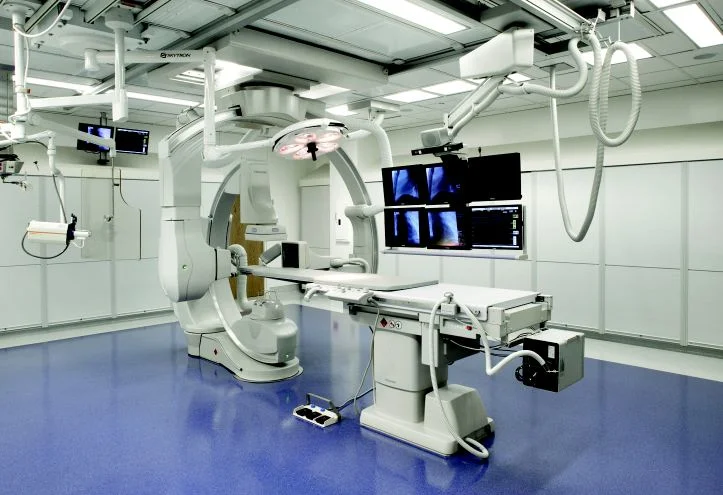

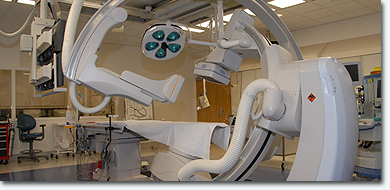

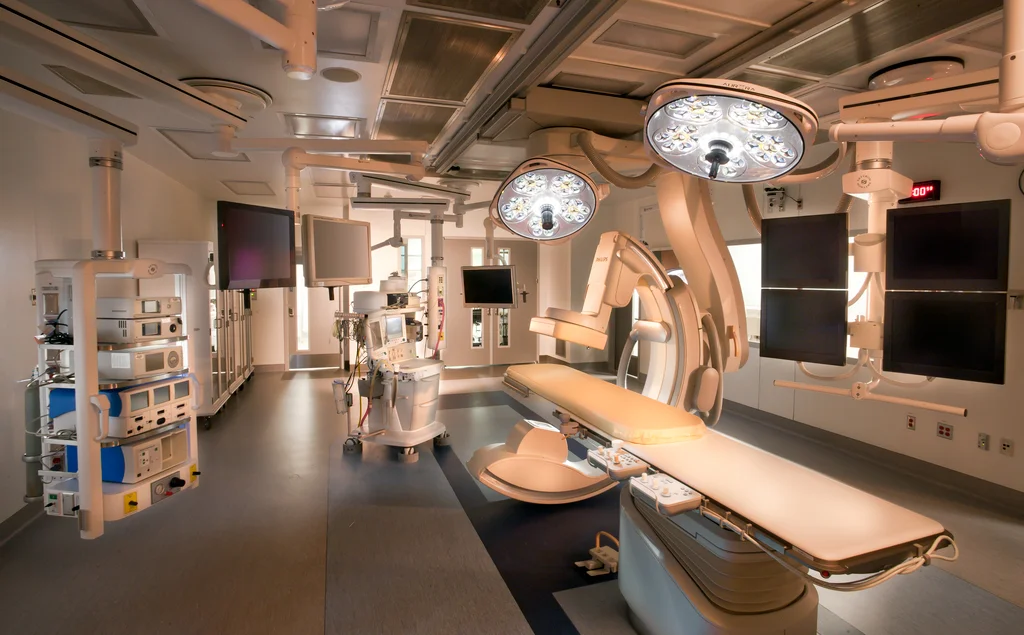

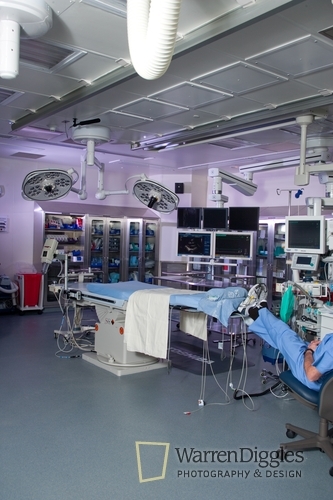

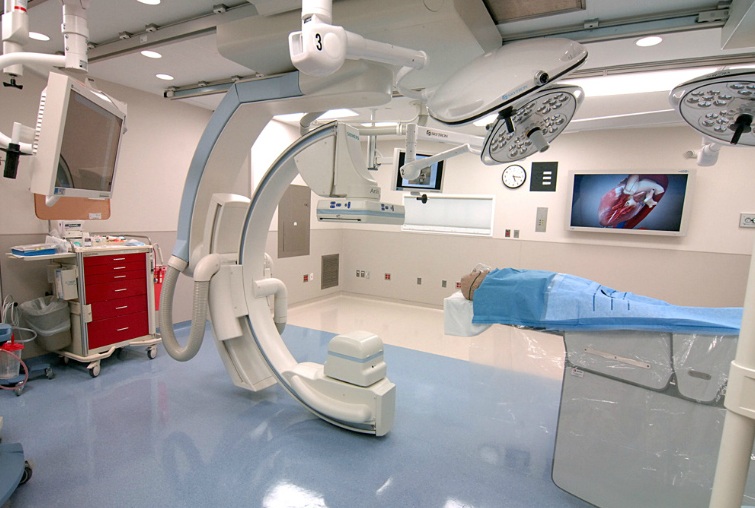

Hybrid Operating Rooms featuring PHILIPS Imaging Systems:

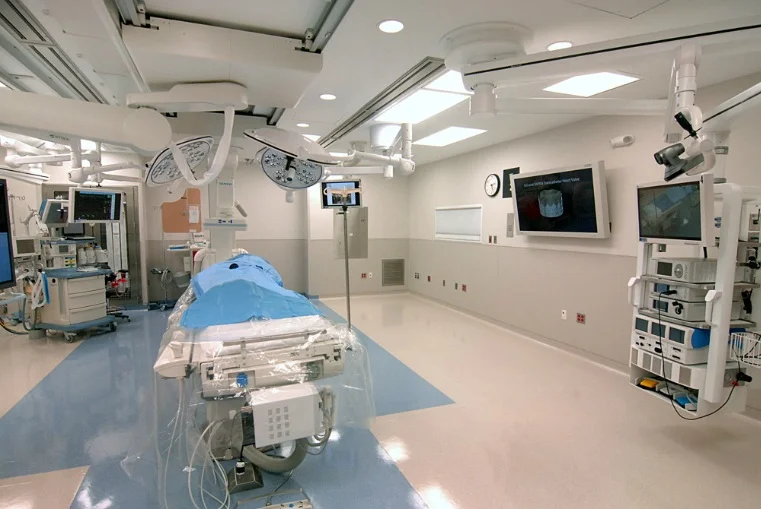

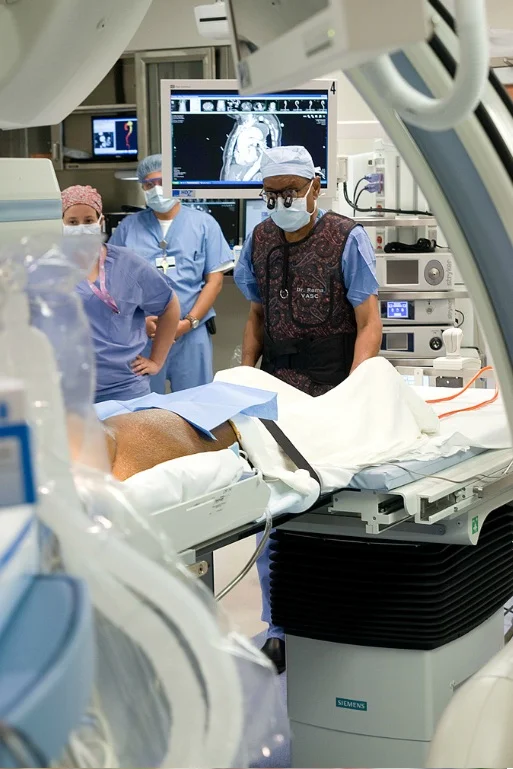

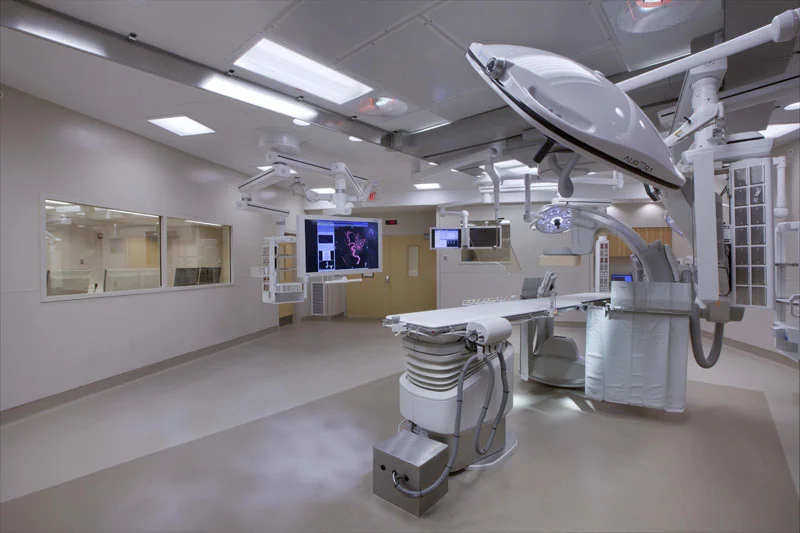

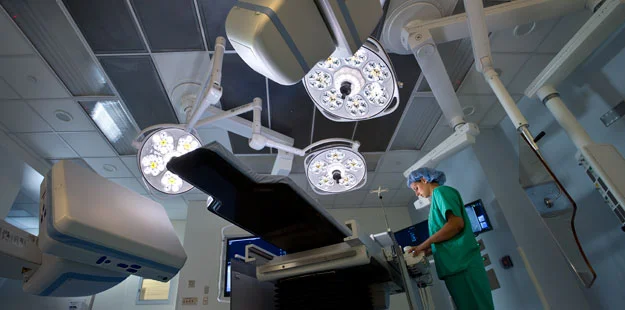

Hybrid Operating Rooms featuring SIEMENS Imaging Systems:



Hybrid Operating Rooms featuring GE Imaging Systems:


Hybrid Operating Rooms featuring TOSHIBA Imaging Systems:


For a copy of our 'Hybrid OR Imaging System Comparison Matrix', please contact us directly or submit your information via the 'SUMBUT INQUIRY' Tab. We look forward to assisting you!


Additional details on Hybrid Operating Room Imaging Systems can be found via our pages dedicated to the offerings of the specific imaging vendor (Philips, Siemens, GE, Toshiba, IMRIS), or via our Imaging Vendor Overview section.


J.M. Keckler Medical Co. - Hybrid Operating Room Consultants

romanoff@kecklermedical.com - 925-588-9614
