LED Surgical Lights for Hybrid Operating Rooms

In general, two different light sources are needed in an operating room: the surgical (operating) lights used for open procedures and the ambient lighting for interventional procedures. Particular attention should be paid to the possibility to dim the lights. This is frequently needed during fluoroscopy or endoscopy. For the surgical lights it is most important that they cover the complete area across the operating room table. Moreover, they must not interfere with head heights and collision paths of other equipment.

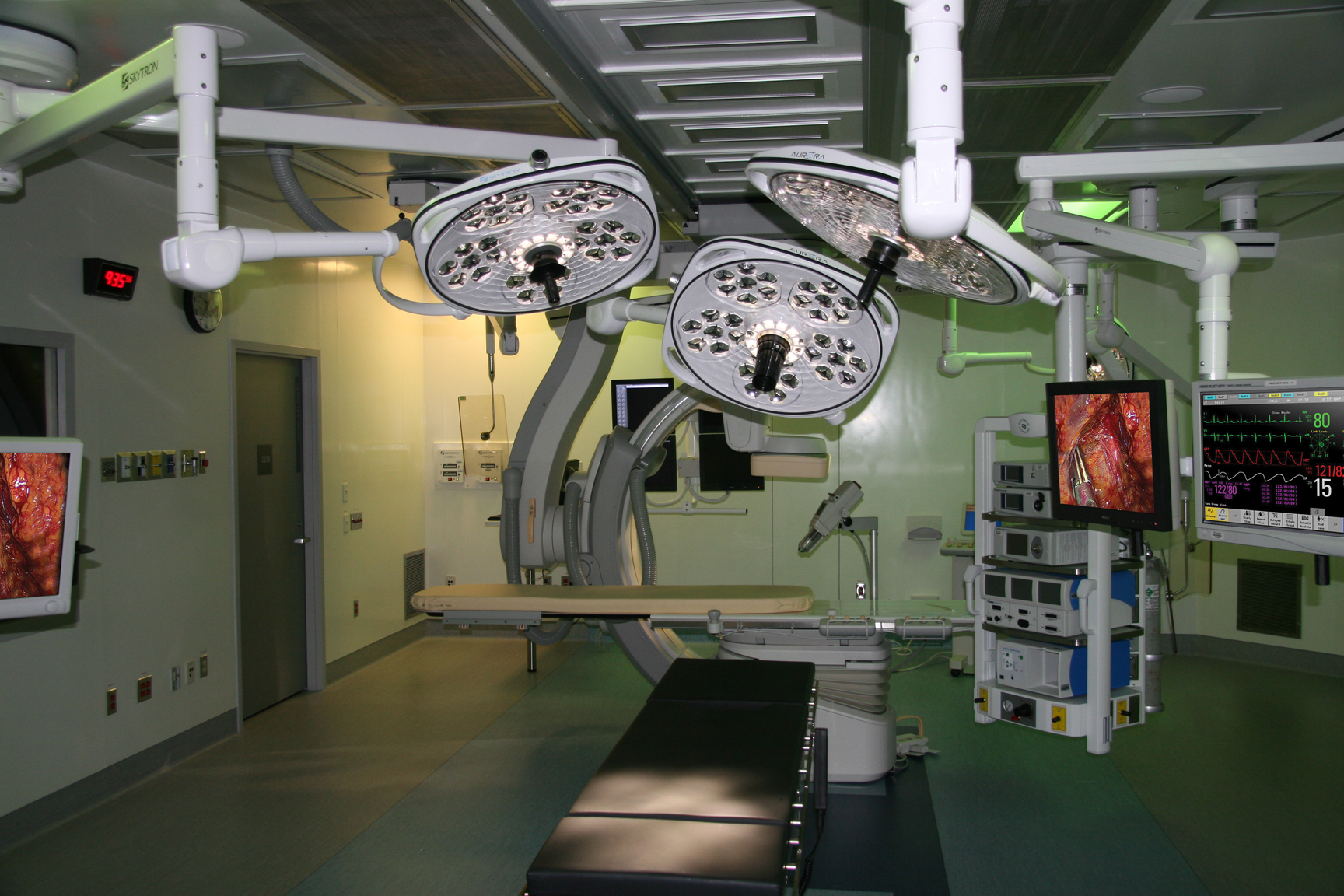

The most frequent mounting position of OR-lights is centrally above the OR table. If a different position is chosen, the lights usually are swivelled in from an area outside the OR table. Because one central axis per light head is necessary, this may lead to at least two central axes and mounting points in order to ensure sufficient illumination of the surgical field.

In a Hybrid Operating Room environment, the movement range of the Angiography imaging system usually determines the positioning of the surgical lights. Central axes must be outside of moving path and swivel range. This is especially important as devices have defined room height requirements that must be met. In this case, head clearance height for the OR-light may be an issue. This makes lights a critical item in the planning and design process.

Other aspects in the planning process of OR lights include avoidance of glare and reflections. Modern OR lights may have additional features, like build in camera and video capabilities. For the illumination of the wound area, a double-arm OR-light system is required. Sometimes even a third light may be required, in cases where more than one surgical activity takes place at the same time, e.g. vein stripping of the legs.

In summary, the key topics for planning the surgical light system include:

  • Central location above the OR table (impossible with ceiling mounted systems).
  • Usually three light heads for optimal illumination of multiple surgical fields
  • Suspension accommodating unrestricted, independent movement and stable positioning of light heads
  • Modular system with options for extension, e.g. video monitor and/or camera.


Hybrid O.R. Surgical Lighting Solutions by SKYTRON

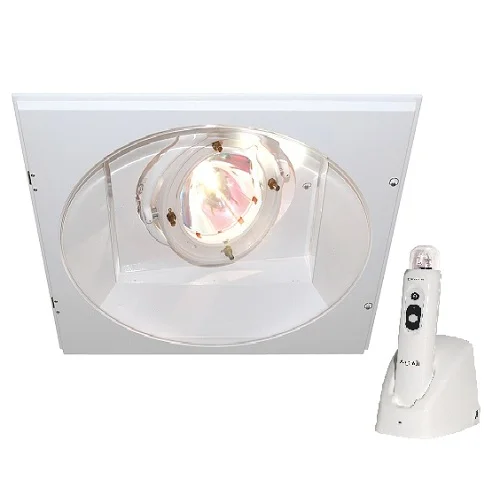

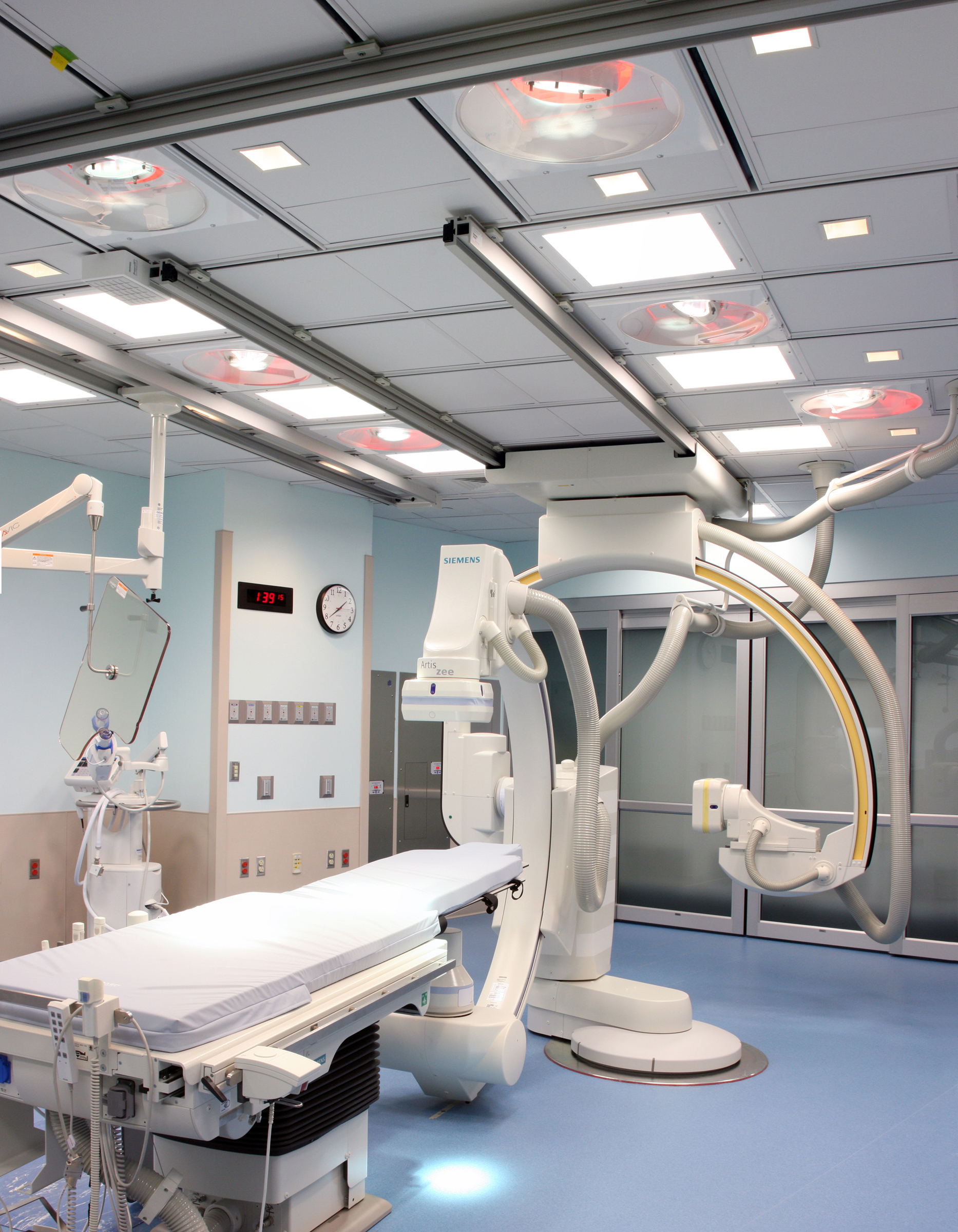

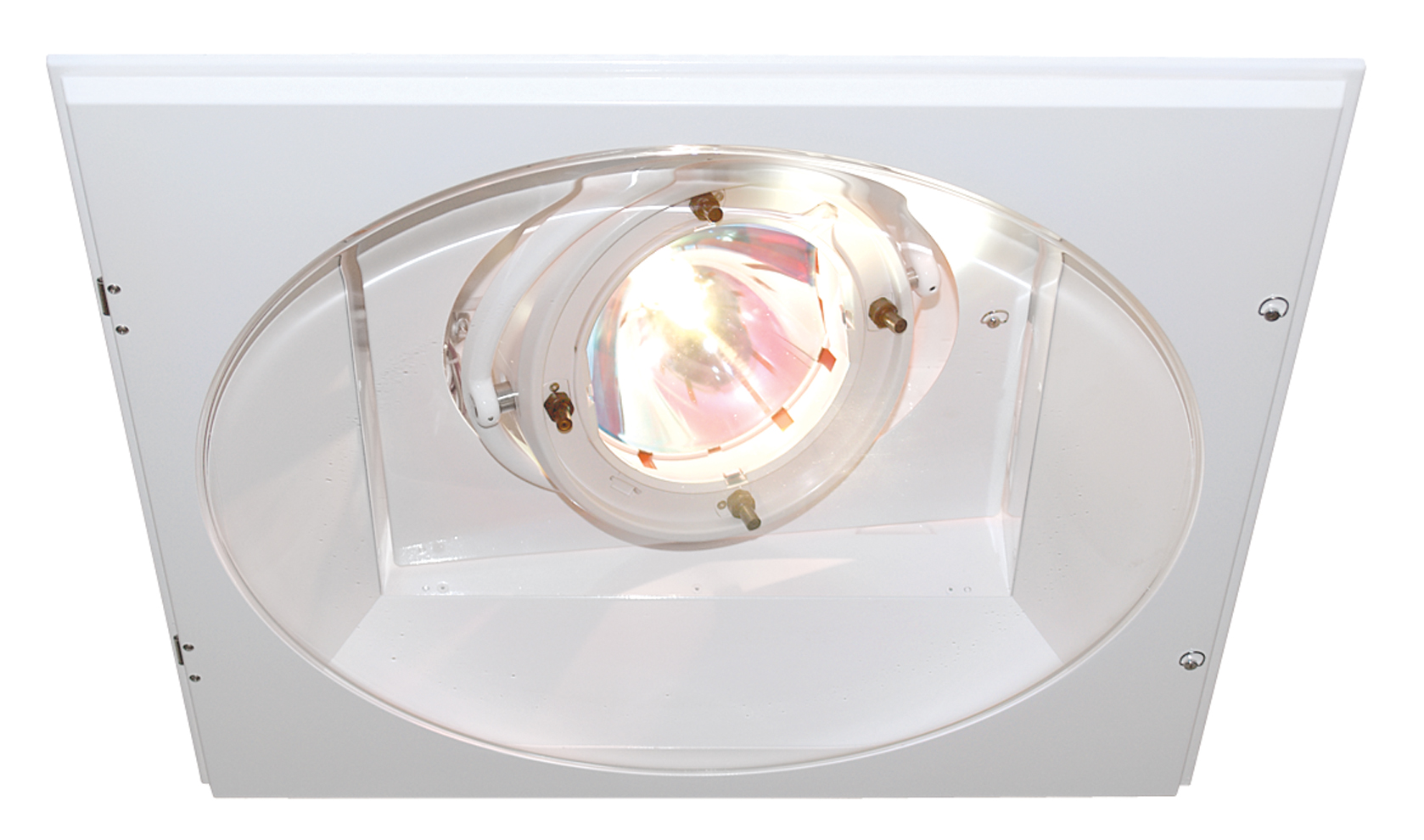

Skytron AR24 Lights

  • Fully Flush Recessed Ceiling Mount
  • 24" x 24" Footprint
  • Exclusive Strobe-Guided Wand Control
  • Wall Control Box for Intensity & Positioning
  • High Lux and Footcandle Output
  • Cool Color-Corrected Light for Natural Tissue Rendering
  • Custom Layout Design & Configuration for each Hybrid OR & Cath Lab Suite
  • Overlapping Light Ranges for Shadow Reductions & Obstruction Work Arounds

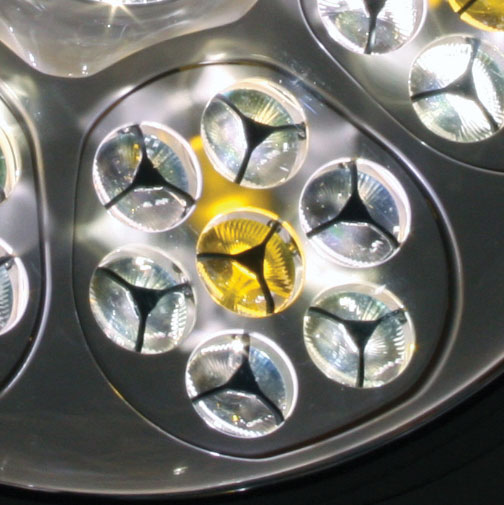

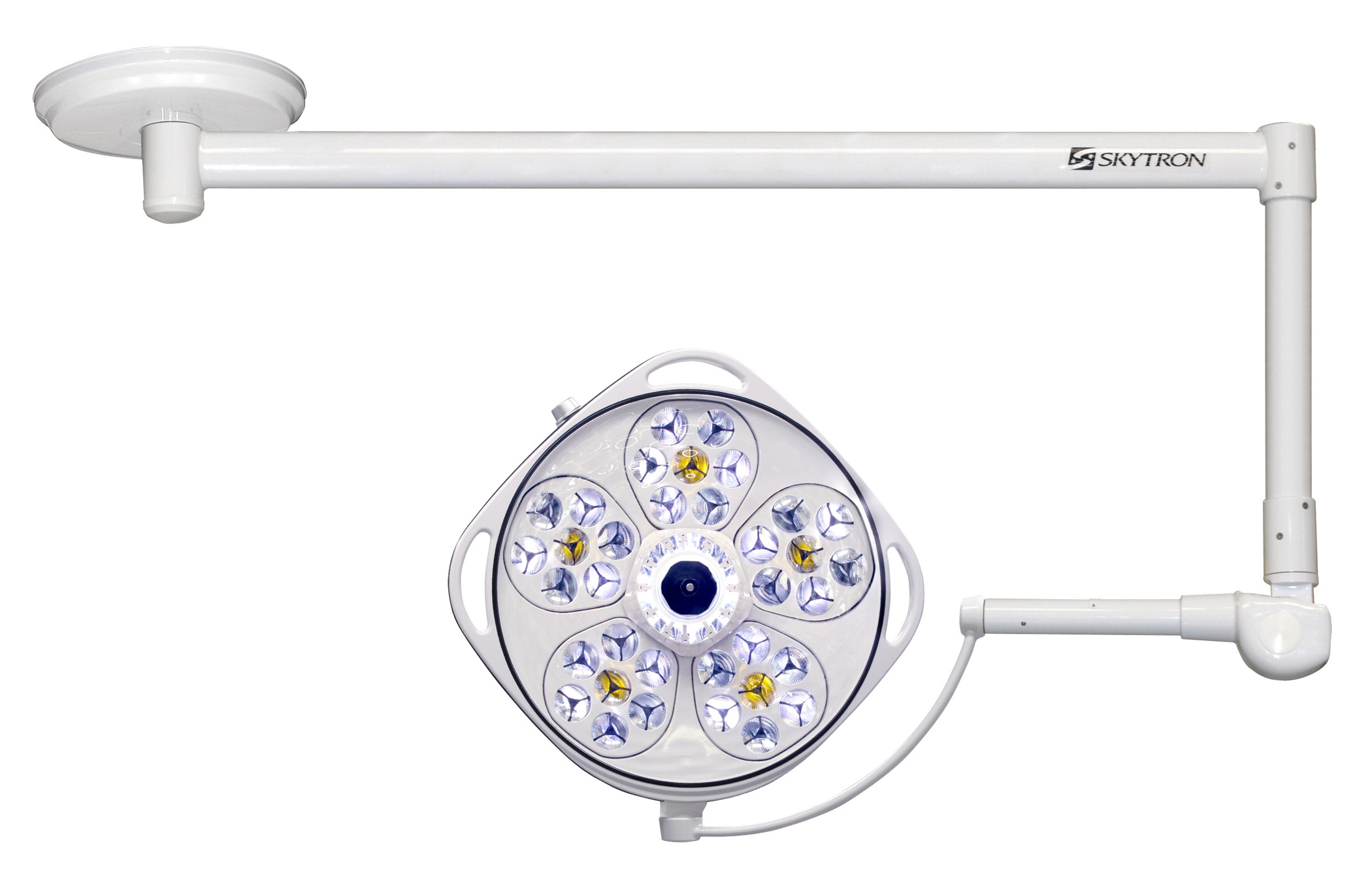

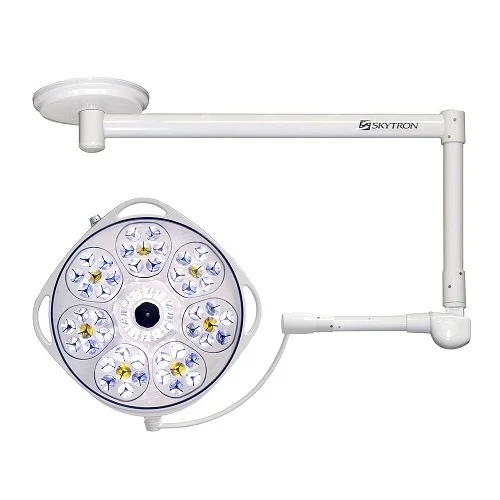

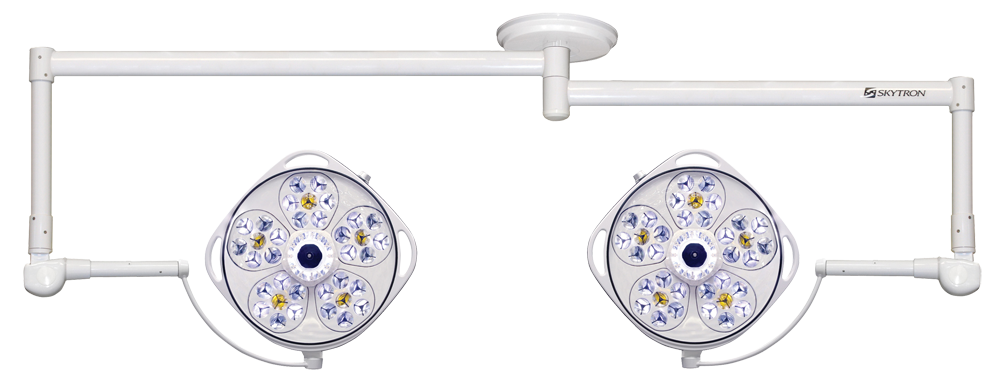

Skytron Aurora-3 LED

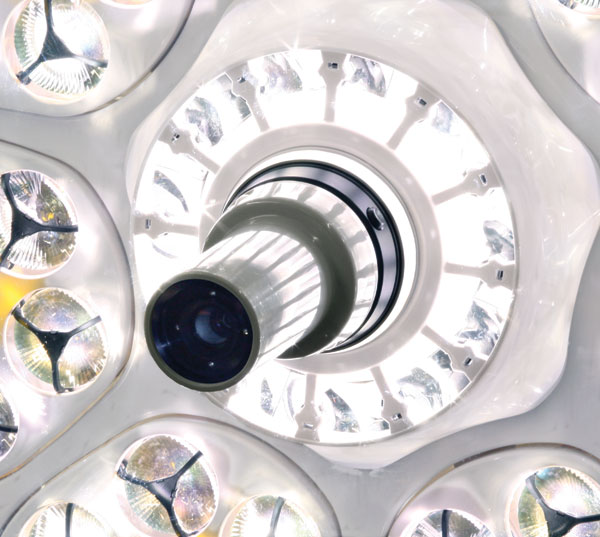

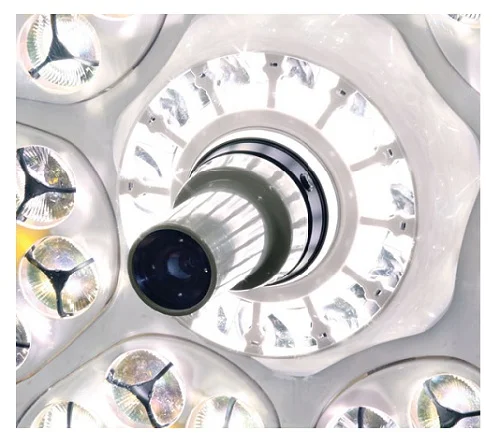

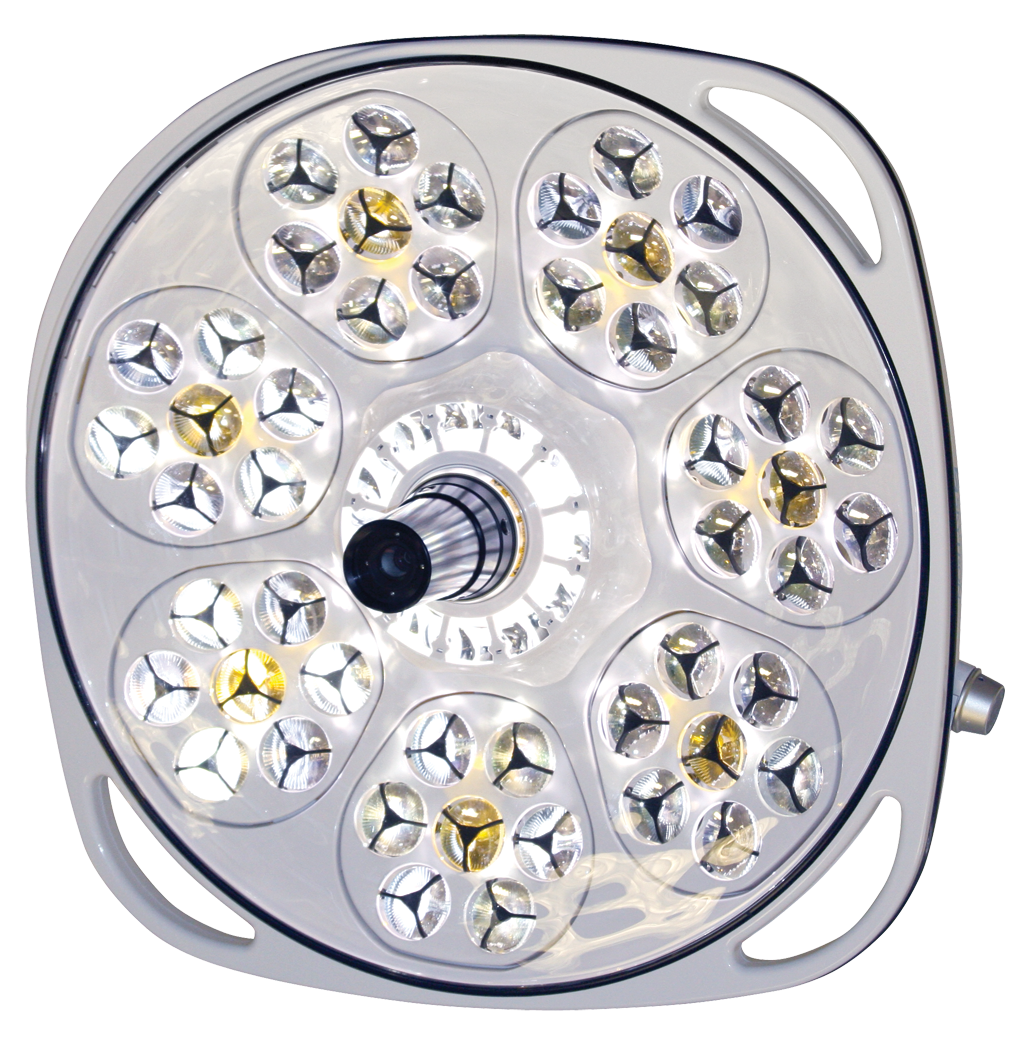

Skytron In-Light HD Camera System

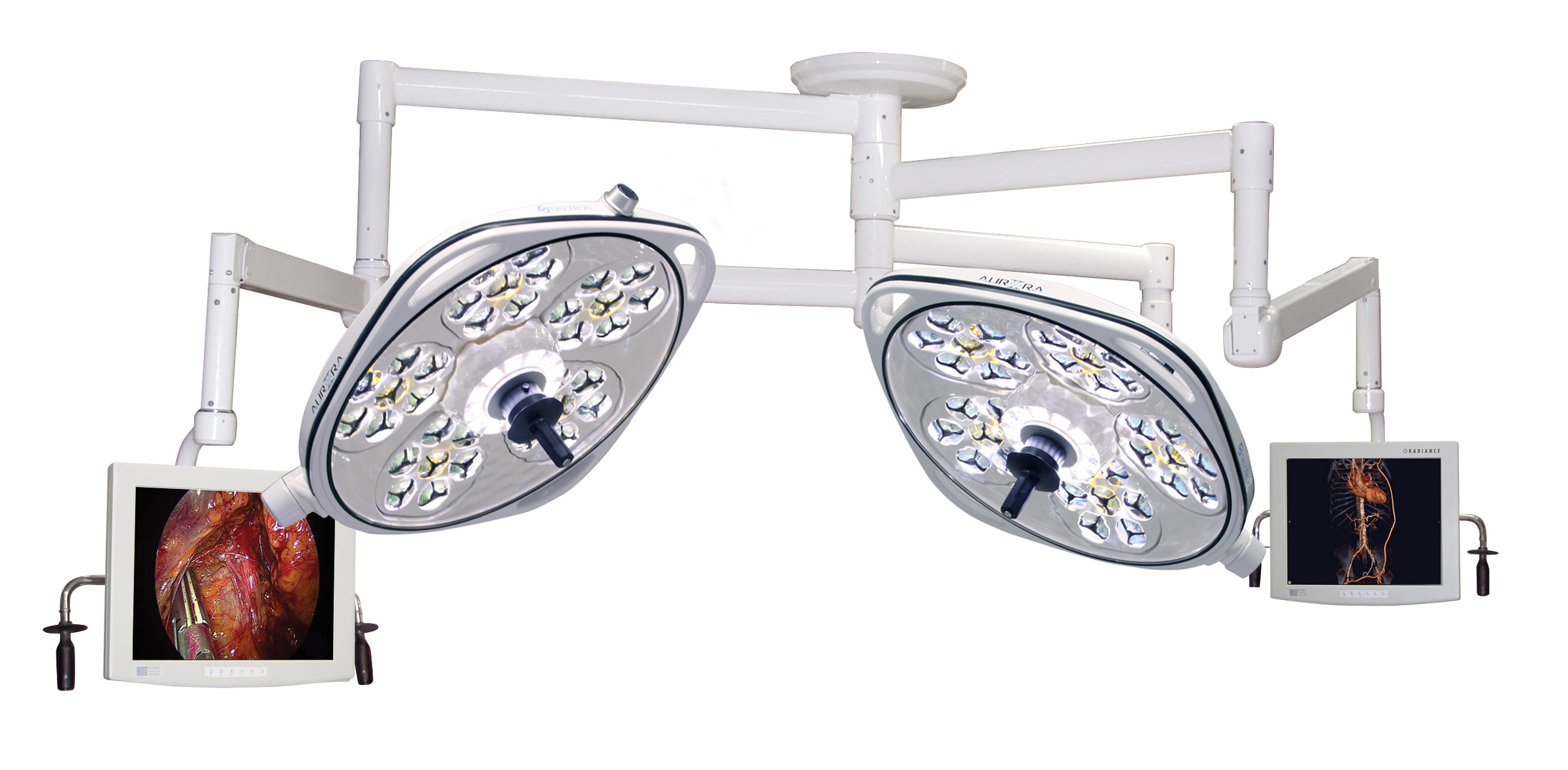

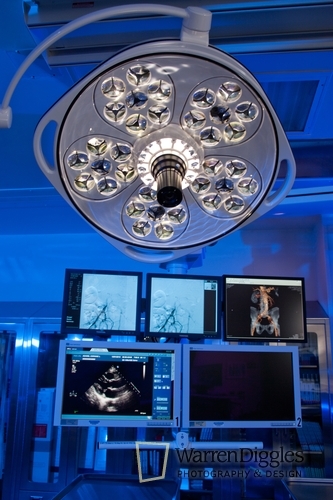

LED Surgical Lights for Hybrid Operating Rooms by SKYTRON


Video Overview of Skytron LED Surgical Lights

for Hybrid Surgical Suites
